We have extended our technological range to the single-serve production sector, being able to transfer all the advantages of a complete and cutting-edge service: R&D capabilities, engineering and design experts, a worldwide after-sales support.

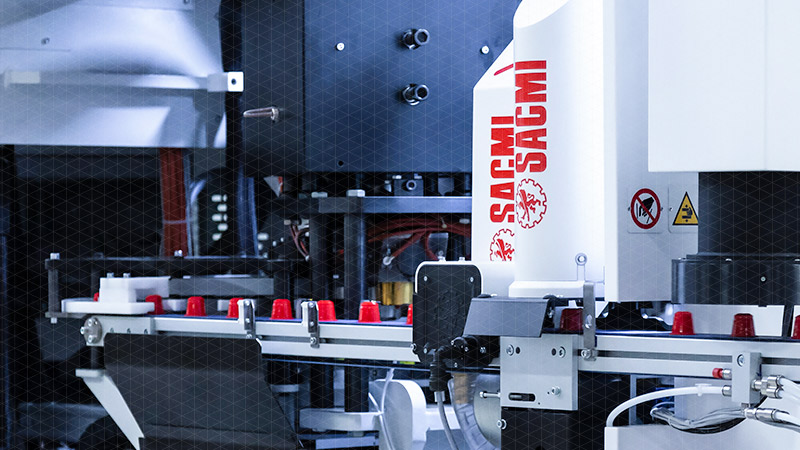

The concept is to extrude a flat pellet of multilayer material and insert it into a standard compression mould (not applicable in the injection process). A continuous work cycle is carried out, during which a flat multilayer pellet is cutted, placed into an open mould, formed into a capsule, ejected into a conveyor belt and real-time inspected. The structure and positioning of the barrier layer wouldn’t change in the transition from pellet to molded part.
Download the catalogue
Making the invisible visible: this is the most demanding inspection carried out with our Computer Vision systems for plastic capsule, where it is necessary to check not only the product and public sides, but also the embedded barrier layer
Read more

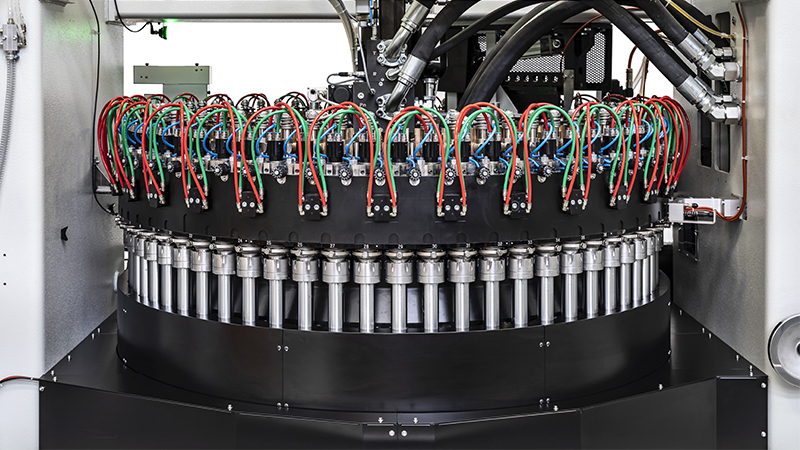

CCM hydraulic rotary presses are specially designed to produce thermoplastic products by means of compression. A continuous work cycle is carried out, during which the plastic material is fed by a plasticization unit, cut into suitably sized pellets and then inserted inside the cavities.

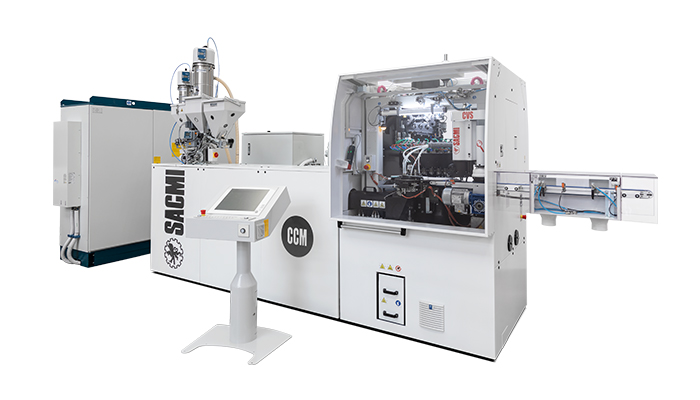

24 cavities, productivity up to 1000 closures/min, max closure diameter 38 mm.
32 cavities, productivity up to 1050 closures/min, max closure diameter 52 mm.

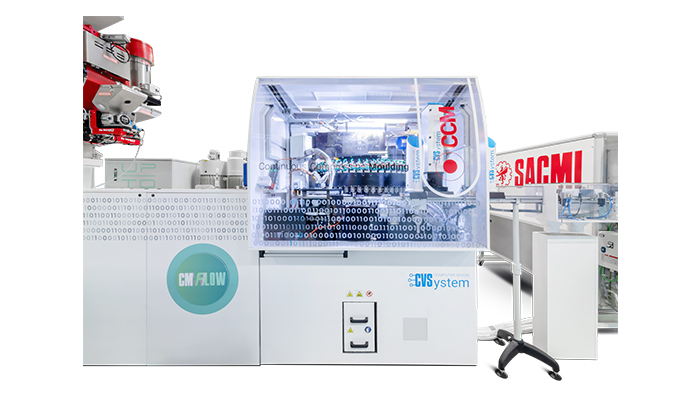

48 cavities, productivity up to 2000 closures/min, max closure diameter 38 mm.

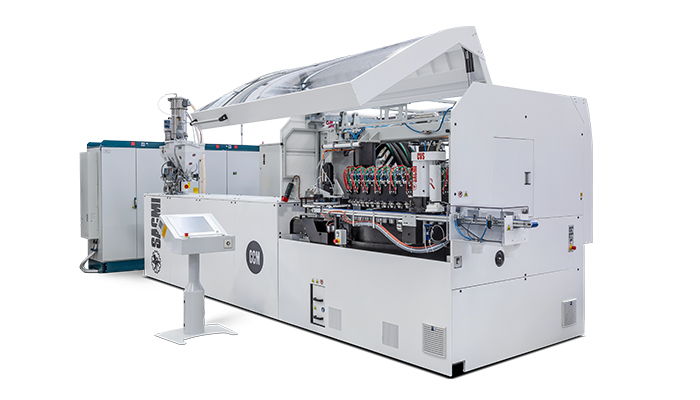

64 cavities, productivity up to 1600 closures/min, max closure diameter 52 mm.
