Machines for producing containers for pharma, food, dairy and Home&Personal Care industry

Machines for the production of plastic containers, by means of a unique combination of compression molding and blow-molding

The blow molded bottle market  is experiencing high growth rates worldwide, mainly in the pharma sector. Against this backdrop SACMI has introduced CBF (Compression Blow Forming) technology, from resin to bottle with a single, compact and highly controlled unit, a game-changing technology for the consumer packaging industry.

CBF - creation of stretch blow-moulding containers (Compression Blow Forming)

The process begins with the resin being introduced into a continuously operating extruder.
The extruder provides a constant supply of resin which is cut into predetermined precise pellets which are inserted into an open compression mold.

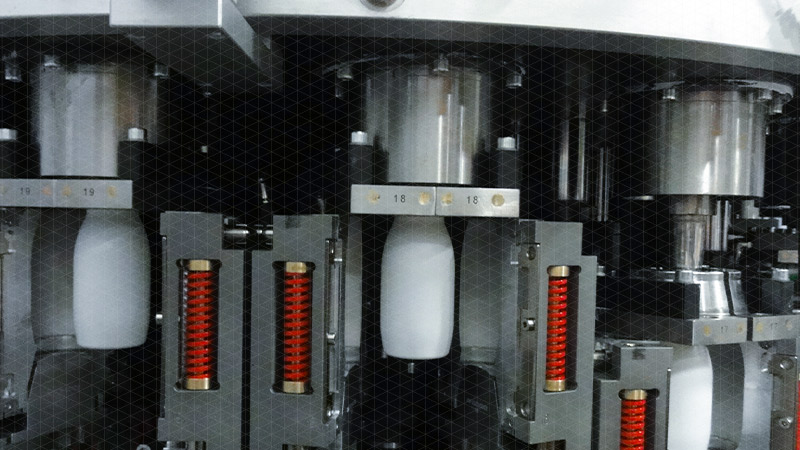

The compression cycle provides the preform to be blow-molded into the final shape.
Comrpession Blow Forming features and related benefits can be grouped in 4 main areas: sustainability, superior bottle quality, total cost of the bottle, 100% perfect bottles.

CBF - creation of stretch blow-moulding containers (Compression Blow Forming)

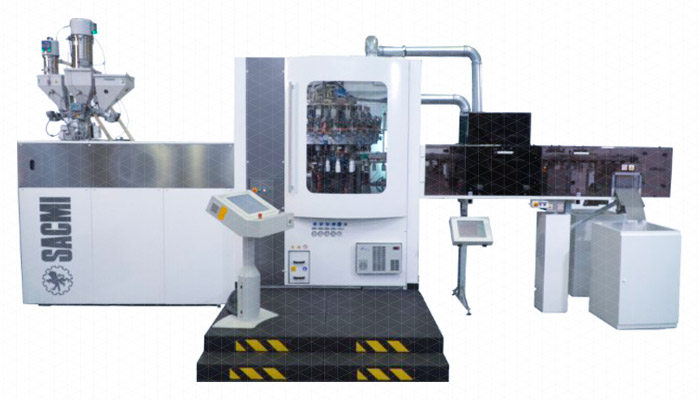

CBF16M

CBF16

Compression Blow Forming Machine

16-cavity machine for the manufacture of medium-size HDPE/PS containers (up to approx. 500 cc - see technical specifications table)

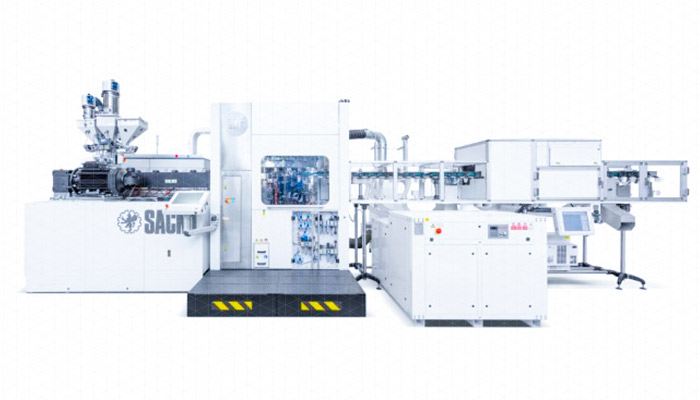

Moulding machine - CBF20S

CBF20

Compression Blow Forming Machine

20-cavity machine for the manufacture of small/medium-size HDPE/PS containers (up to approx. 300 cc - see technical specifications table)

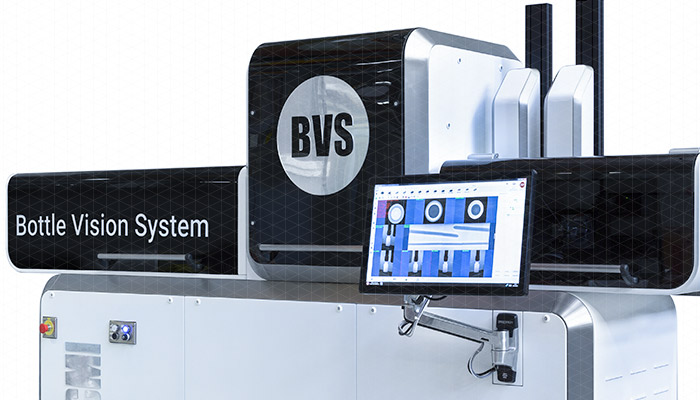

INSPECTION SYSTEMS

FOR PLASTIC CONTAINERS

From small containers for ophthalmic applications up to large detergent bottles, a complete range of vision systems for Quality Control

CBF HDPE/PS

Technical data

CBF16 CBF20
MAX NOMINAL Ø mm 75 56
MAX NOMINAL Height mm 220 220
NUMBER OF CAVITY 16 20
MAX PROD. CAPACITY BPH 10.000 13.000

CBF HDPE/PS Video

CBF HDPE/PS Video
CBF16M

CBF16M

Compression Blow Forming Machine

16 cavities, productivity up to 10000 containers/hrs, max nominal diameter 75 mm, max nominal height 220 mm.

Moulding machine - CBF20S

CBF20S

Compression Blow Forming Machine

20 cavities, productivity up to 13000 containers/h, max nominal diameter 56 mm, max nominal height 220 mm.

INSPECTION SYSTEMS

FOR PLASTIC CONTAINERS

From small containers for ophthalmic applications up to large detergent bottles, a complete range of vision systems for Quality Control

CBF PET

Technical data

CBFP16 CBFP20
MAX NECK Ø mm 75 53
MAX BOTTLE Ø mm 77 57
MAX NOMINAL Height mm 220 220
NUMBER OF CAVITY 16 20
MAX PROD. CAPACITY BPH 10.000 13.000

CBF PET Video

CBF PET Video
